Policies — Security & Policies documentation

Configuration

Who a policy group applies to, and the coarse on/off switches that sit above every other rule. A group with no selectors is a catch-all; the shipped Default group is exactly that.

#	Control	What it does · how · why
1	Policy Statustoggle	Enables or disables the whole group. Off means the group is skipped entirely — traffic falls through to the next group in order, ending at Default. groups[].status
2	Block all Internet accesstoggle	A hard override evaluated before any rule: drops every flow the group covers, except the appliance’s own services. Pair it with a schedule to build a time-boxed lock-out. overrides.block_all
3	Block Untrusted Devicestoggle	Drops only devices the inventory has not marked trusted, so a new or unknown host gets nothing until you classify it. overrides.block_untrusted
4	Selector Match Logicselect	ANY (union) or ALL (intersection) across the dimensions below. See the note above. selectors.logic
5	IP / Networksbutton	Source and destination subnets the group targets. A bare address gets /32 (or /128 for IPv6); “Both” matches only when source AND destination are in the list. Empty means any. selectors.src_cidrs · dst_cidrs
6	MAC Addressesbutton	Target specific hardware by MAC. Any separator style is accepted; stored upper-case. selectors.devices (MAC form)
7	Interfacestoggle	Restrict the group to traffic on chosen engine interfaces (em0 is WAN here). A saved name that is not currently attached shows in red and is kept, not dropped. selectors.interfaces
8	Packet Directiontoggle	Inbound, Outbound, or both. Unchecking both means “any” — the two boxes are really a three-state control. selectors.direction
9	VLAN IDsbutton	Scope by 802.1Q VLAN. Accepts single ids and ranges (10, 20, 100-105); anything outside 1–4094 is dropped. selectors.vlans
10	Devicesbutton	Target named devices from the inventory. selectors.devices
11	Device categoriesbutton	Target whole device categories instead of individual hosts. selectors.device_categories
12	Device Tagsbutton	Free-text tags that group devices logically — guest, iot, vip. selectors.device_tags
13	Usersbutton	Target directory users; the list comes from the identity inventory. selectors.users
14	Groupsbutton	Target directory groups. Membership ranks below an exact user match in Auto mode. selectors.groups
15	Apply scheduleselect	Bind the group to a named schedule. Outside its window the engine skips the group (it does not drop) and moves to the next — so a strict group plus a schedule gives access only during set hours. overrides.schedule → globals.schedules[]
16	Add Schedulebutton	Define a new time window — one unified range or per-day ranges — and apply it to this group. globals.schedules[]
17	Manage Schedulesbutton	Edit or delete existing windows. Deleting one resets this group’s reference; other groups that referenced it are healed to `always` on the next save. globals.schedules[]

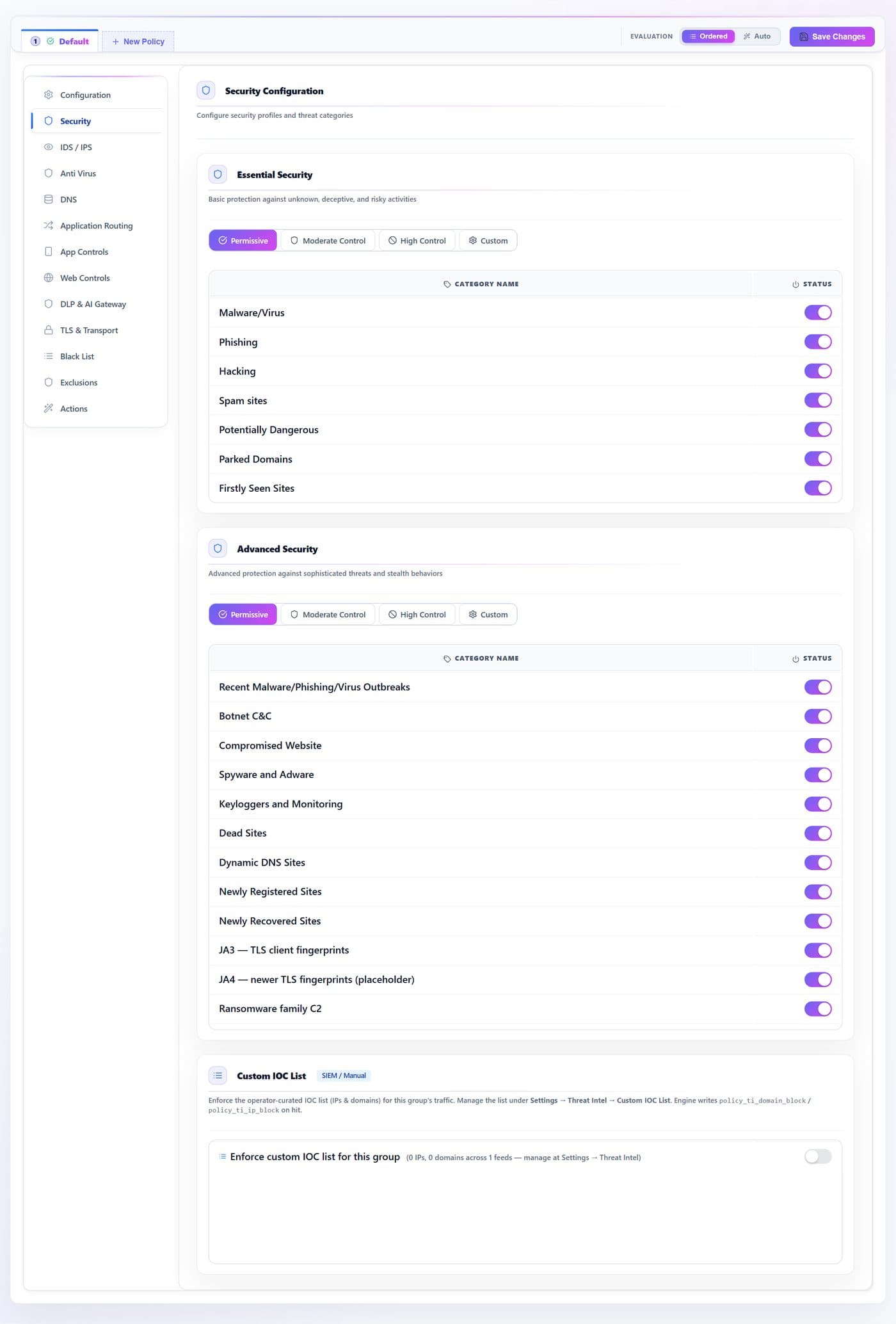

Security

Two curated threat-intelligence bundles — Essential (7 categories) and Advanced (26) — plus a per-group custom indicator switch. Each category is a live feed the engine matches against domain, SNI and destination IP.

#	Control	What it does · how · why
1	Essential profileradio	One-click preset for the Essential block: Permissive (all off), Moderate, High (all on), or Custom. security.basic_mode (UI only)
2	Essential categorytoggle	One switch per feed: Malware/Virus, Phishing, Hacking, Spam, Potentially Dangerous, Parked Domains, First-seen sites. High-signal, cheap to leave on. security.<id>
3	Advanced profileradio	The same preset control for the Advanced block. security.advanced_mode (UI only)
4	Advanced categorytoggle	26 further feeds — botnet C&C, ransomware, cryptominer, banking trojan, DDoS amplifier, scanner, anonymizer/Tor, gambling, piracy and more. Each one adds lookup cost, so enable what your risk posture needs. security.<id>
5	Adult / NSFWtoggle	Shown read-only: this row mirrors the Adult category in App Controls, which is the single switch that drives both adult catalogs. Set it there. security.adult_nsfw (derived)
6	Enforce custom IOC listtoggle	Checks this group against your own uploaded indicator lists in addition to the feeds above. ti.enable

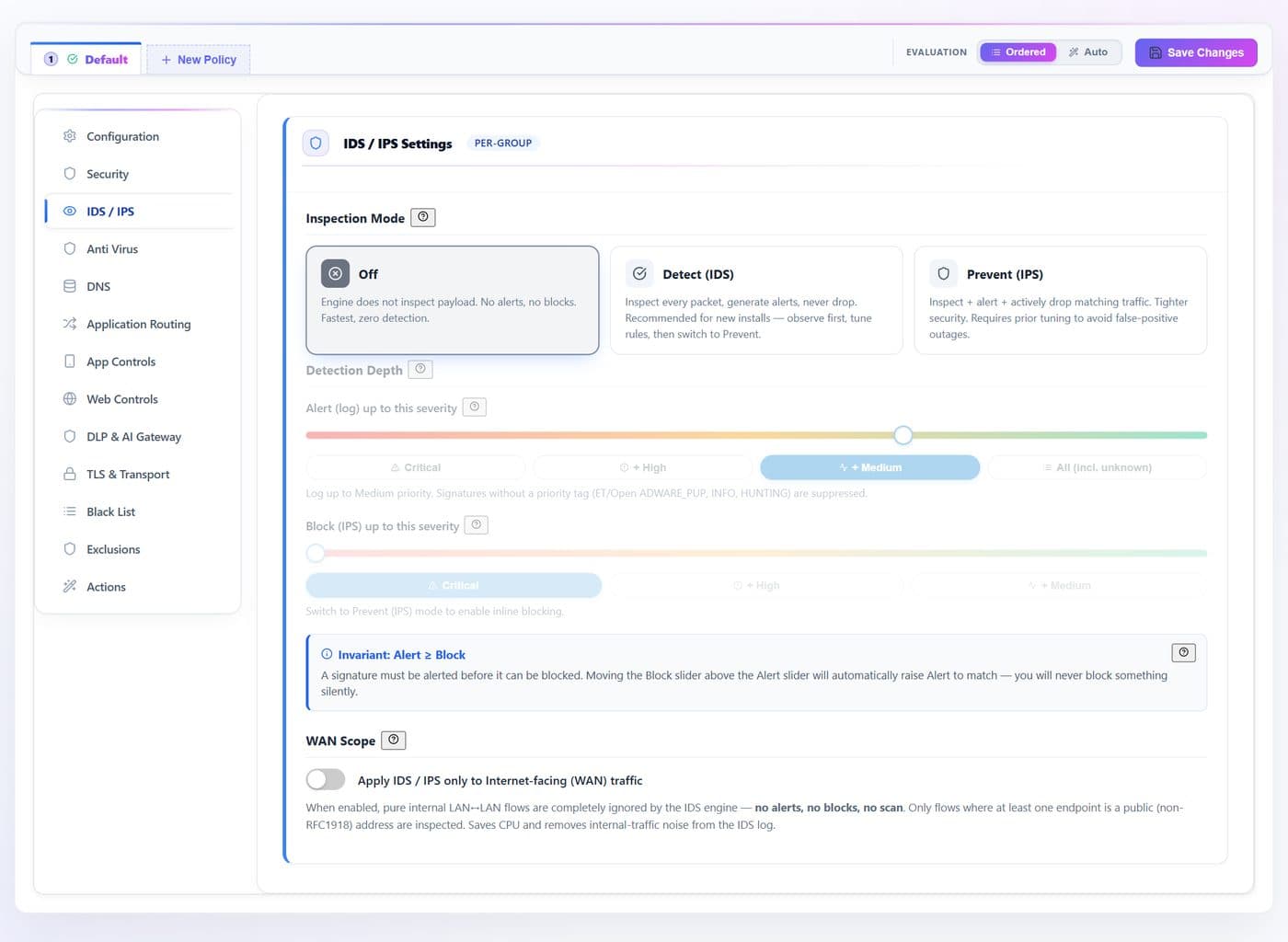

IDS / IPS

The signature engine (Suricata-style rules) for this group. Decide whether to inspect payloads at all, then how deep to alert versus actively drop.

#	Control	What it does · how · why
1	Inspection Moderadio	Off — no payload inspection. Detect (IDS) — inspect and alert, never drop; the right setting for a new install: observe, tune, then switch. Prevent (IPS) — inspect, alert and drop matches. ids.mode · ids.enable
2	Alert up to this severityslider	How deep to log: Critical → +High → +Medium → All. Signatures with no priority tag (ADWARE_PUP, INFO, HUNTING) are suppressed below “All”. ids.alert_max_priority
3	Block up to this severityslider	How deep to drop, capped at the Alert level. Start at Critical only and widen as you tune out false positives. ids.block_max_priority
4	WAN-only scopetoggle	Ignores purely internal LAN↔LAN flows — no alerts, no blocks — and inspects only flows touching a public address. Saves CPU and removes internal noise from the IDS log. ids.wan_only

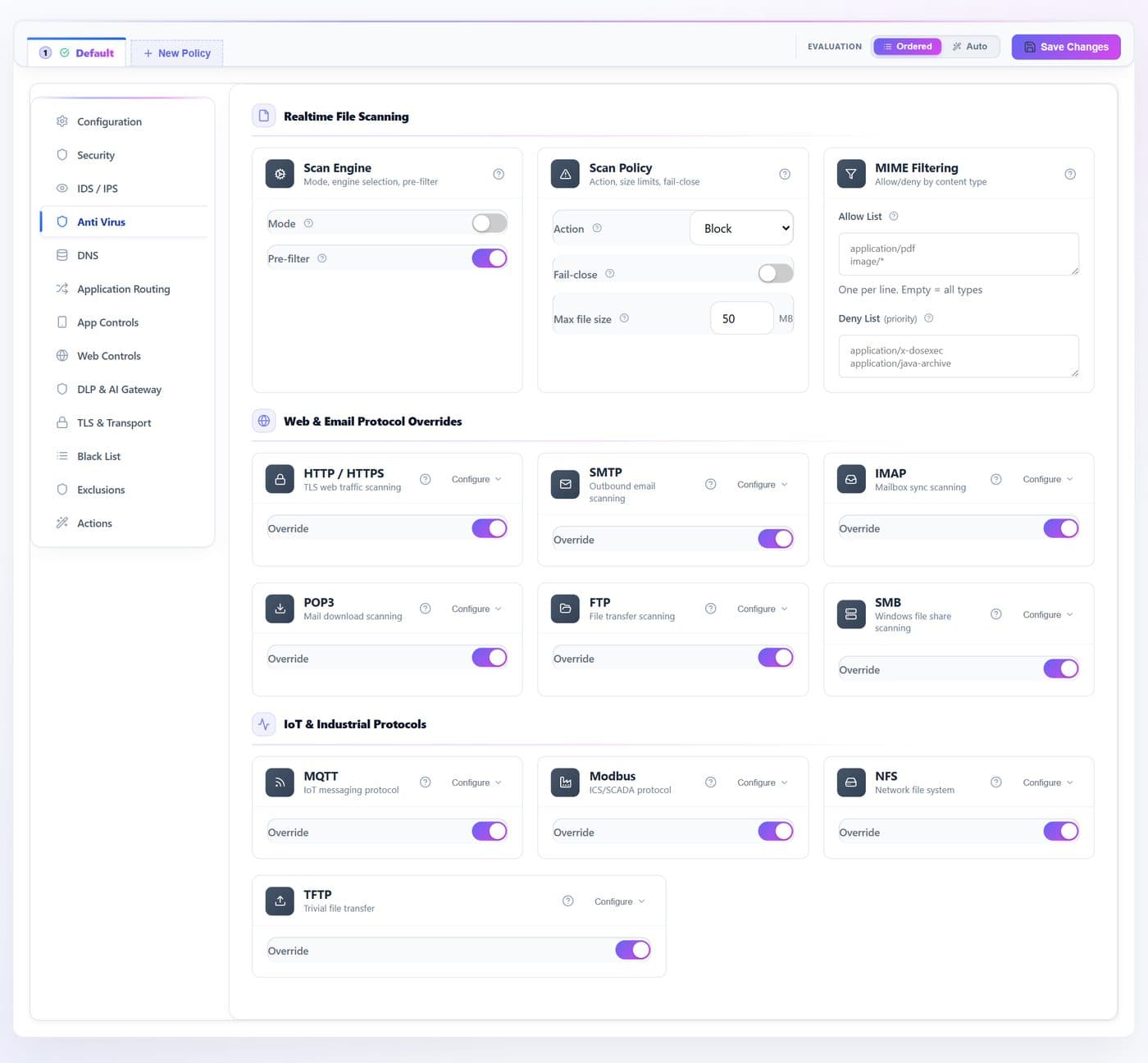

Anti Virus

File scanning of transferred content (ClamAV). A group-level policy, plus optional per-protocol overrides for web, mail, file-share and IoT protocols.

#	Control	What it does · how · why
1	Modetoggle	Master on/off for file scanning in this group. The first enable installs and starts the virus engine. file.scan.mode
2	Actionselect	What to do on a detection: log, block, or quarantine the device. file.scan.action
3	Pre-filtertoggle	A fast pre-screen before full scanning. On by default. file.scan.prefilter
4	Fail-closetoggle	If a scan cannot complete, block the transfer instead of letting it through. Off means fail-open. file.scan.fail_close
5	Max file size (MB)num	Files larger than this skip scanning entirely. Empty means unlimited. file.scan.max_mb
6	Allow Listtext	Restrict scanning to these MIME types, one per line. file.scan.mime_allow
7	Deny Listtext	Never scan these MIME types; takes priority over the allow list. file.scan.mime_deny
8	Protocol Overridetoggle	Turns on a per-protocol policy for that card — HTTP/S, SMTP, IMAP, POP3, FTP, SMB, MQTT, Modbus, NFS, TFTP. Each exposes the same mode, action, engine, pre-filter, size and MIME set as the group. file.scan.protocols.<proto>

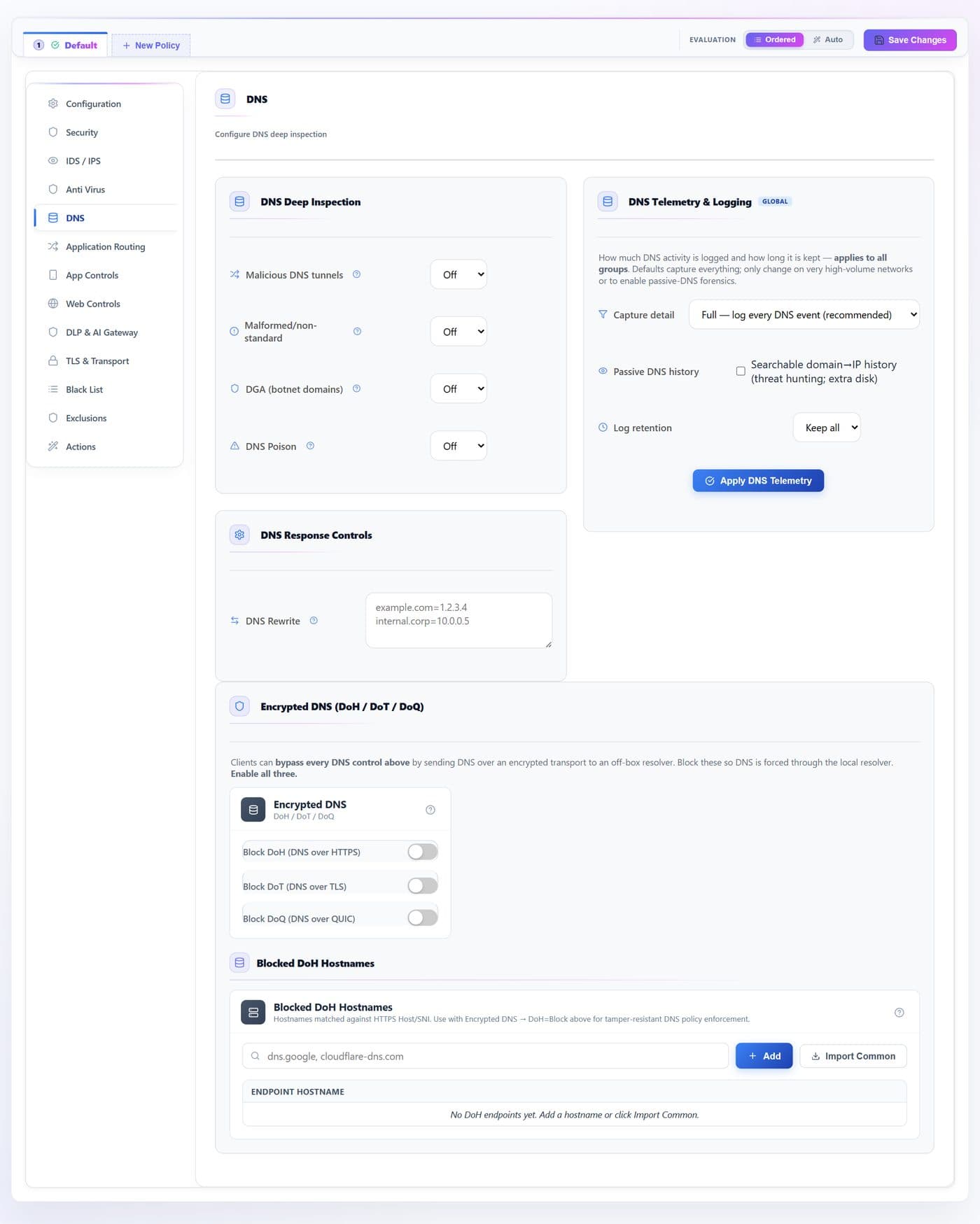

DNS

DNS-layer heuristics evaluated for this group, plus global capture settings and encrypted-DNS controls.

DNS — every documented control marked — The numbers key each control to the table below.Zedmos appliance · DNS

#	Control	What it does · how · why
1	Malicious DNS tunnelsselect	Detects data exfiltration tunnelled over DNS, by query shape and reputation. dns.tunnel
2	Malformed / non-standardselect	Flags malformed or non-standard DNS messages. dns.malformed
3	DGA (botnet domains)select	Detects algorithmically generated domains typical of botnet rendezvous. dns.dga
4	DNS Poisonselect	Stateful cache-poisoning detection — duplicate transaction ids, impossible timing, abnormal TTLs. Evaluated for the covering group. dns.poison
5	DNS Rewritetext	Force a domain to an address, one `domain=1.2.3.4` per line. IPv4 answers only. dns.rewrite
6	Capture detailselect	How much DNS telemetry to store, appliance-wide. Applied by Apply DNS Telemetry, not by Save Changes. globals.dns.telemetry
7	Apply DNS Telemetrybutton	Writes the three global capture settings immediately. globals.dns.telemetry · writerd
8	Block DoHtoggle	Blocks DNS-over-HTTPS so queries stay visible to the policies above. transport.doh_strategy
9	Block DoTtoggle	Blocks DNS-over-TLS. transport.dot_strategy
10	Block DoQtoggle	Blocks DNS-over-QUIC. transport.doq_strategy
11	Blocked DoH endpointstext	Suffix-block known DoH provider hostnames; Import Common fills in ten well-known resolvers. web.doh_endpoints_block

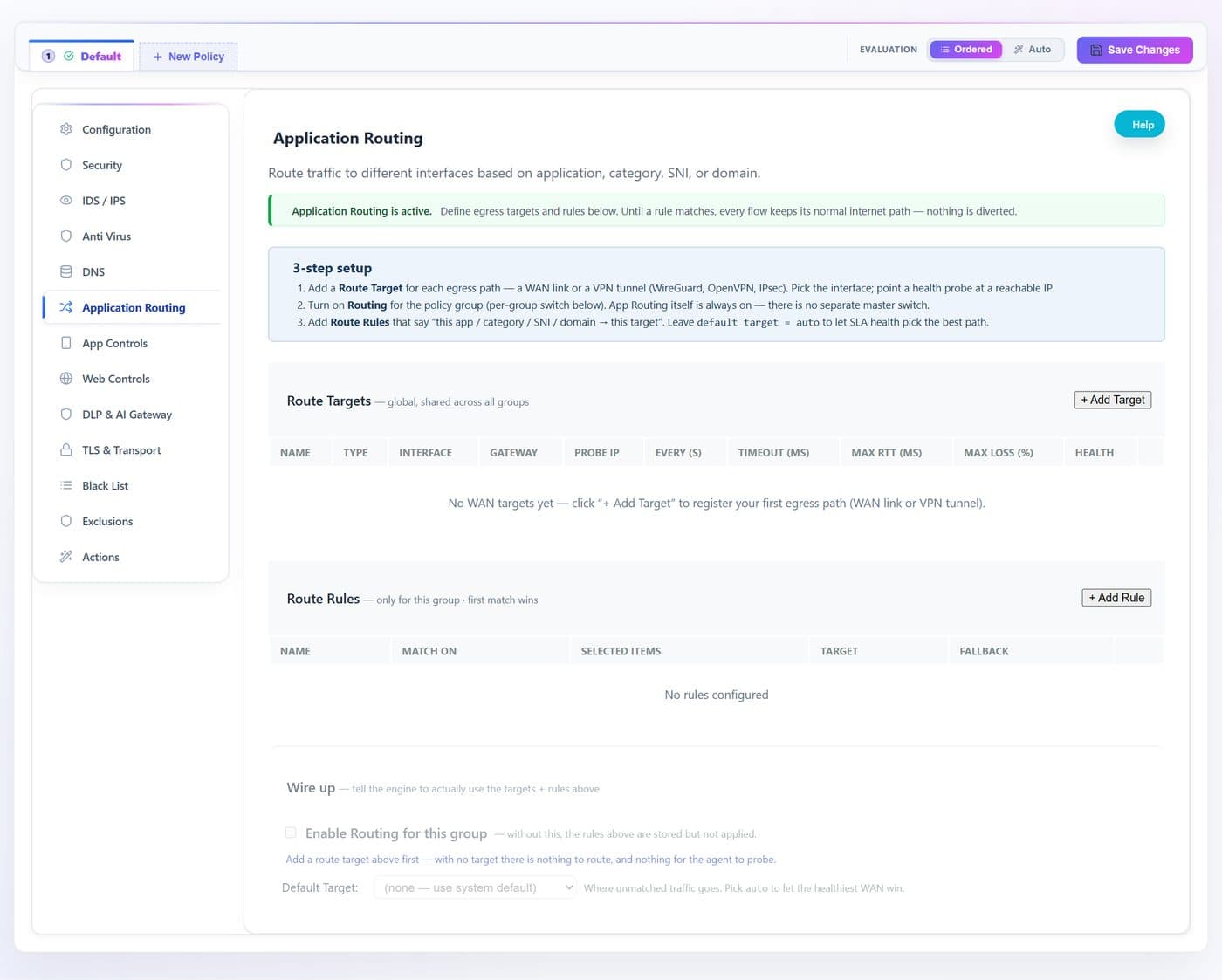

Application Routing

SD-WAN. Define egress targets (WAN links, VPN tunnels) with SLA probes, then steer applications, categories, SNIs or domains to a target with a fallback.

#	Control	What it does · how · why
1	Status bannergroup	Tells you whether App Routing is active. Until a rule matches, every flow keeps its normal internet path — nothing is diverted, so turning the feature on is not itself disruptive.
2	Three-step setupgroup	The order that works: add a Route Target for each egress path, turn Routing on for the group, then add Route Rules. Skipping the middle step is the usual reason rules appear to do nothing.
3	Add Targetbutton	Registers an egress path — a WAN link or a VPN tunnel (WireGuard, OpenVPN, GRE) — and opens a row with its fields: name (what rules refer to; keep it short, the engine truncates long ones), type and interface, gateway, and the SLA probe (target address, interval, timeout, and the latency, loss and jitter thresholds that decide whether the path counts as healthy). Targets are global — every group picks from the same list. globals.routing.targets
4	Route Targets tablegroup	One row per egress path with its live health. Empty, as here, means no path is registered yet and no rule can divert anything. globals.routing.targets
5	Add Rulebutton	Steer traffic: match on app, category, SNI or domain, send it to a target, optionally with a fallback. Rules the validator rejects are badged and dropped by the engine at load. routing.routes[]
6	Enable Routing for this grouptoggle	The master switch. Without it the rules above are inert and the appliance forwards normally. Turning it on for any group also enables the global SD-WAN gate. routing.enabled
7	Default Targetselect	Where traffic that matches no rule egresses; `auto` follows the healthiest WAN. routing.default_target

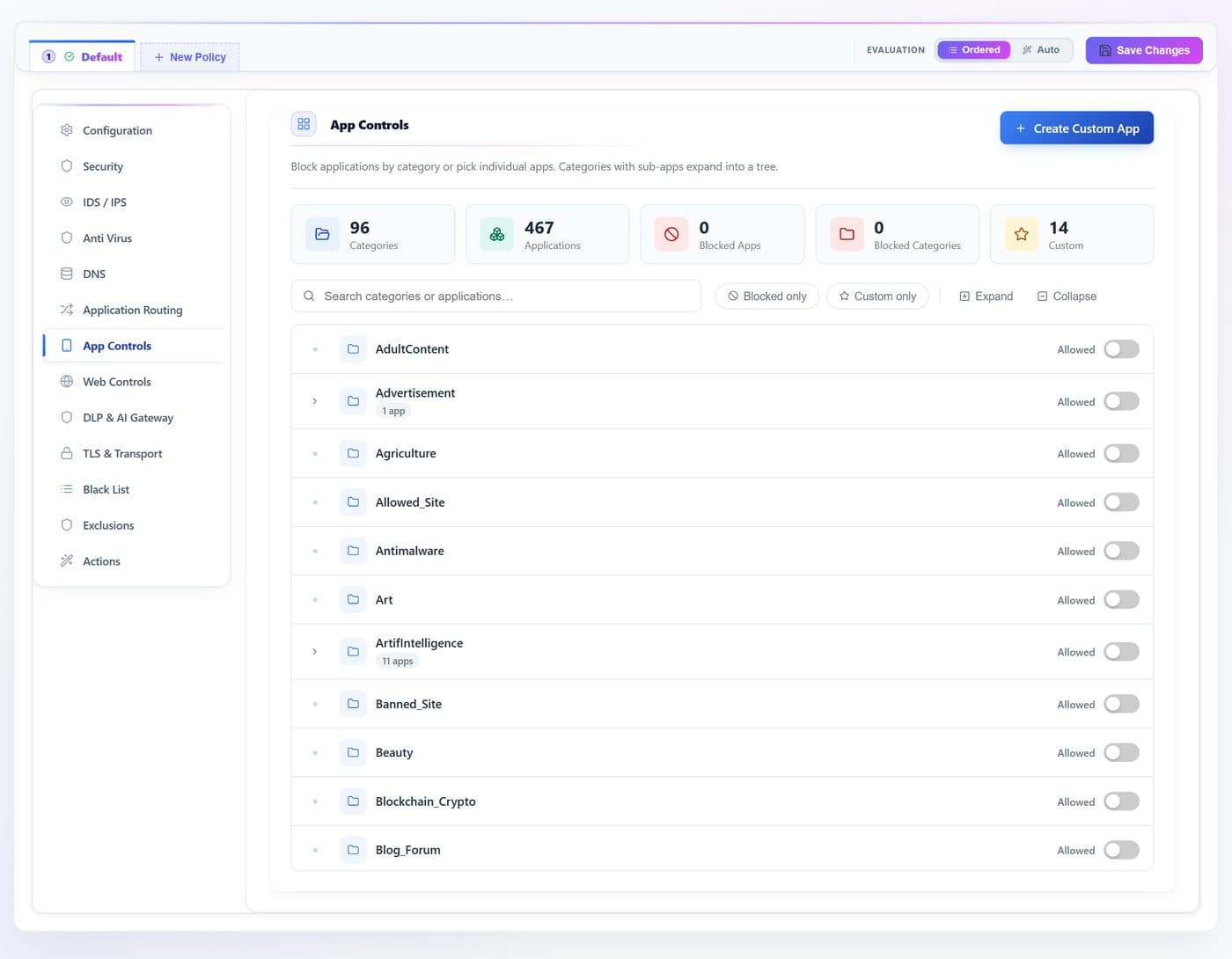

App Controls

Block traffic by application or by whole application category, using the engine’s deep-packet classifier — around 90 categories and several hundred applications, searchable, plus a custom-application builder.

#	Control	What it does · how · why
1	Create Custom Appbutton	Define an application by domains, ports or destination CIDRs so your own or niche services can be matched by name. Needs at least one criterion; names are truncated to 63 characters. globals.apps.custom[]
2	Searchtext	Filter the tree by category, application name or key. view filter
3	Blocked onlybutton	Show just what is currently blocked — the fastest way to review a group’s footprint. view filter
4	Custom onlybutton	Show just the applications you defined. view filter
5	Expand / Collapsebutton	Open or close every category that contains applications. view state
6	Category switchtoggle	Blocks the whole category. The counter beside a category name shows how many applications it holds. apps.categories_block

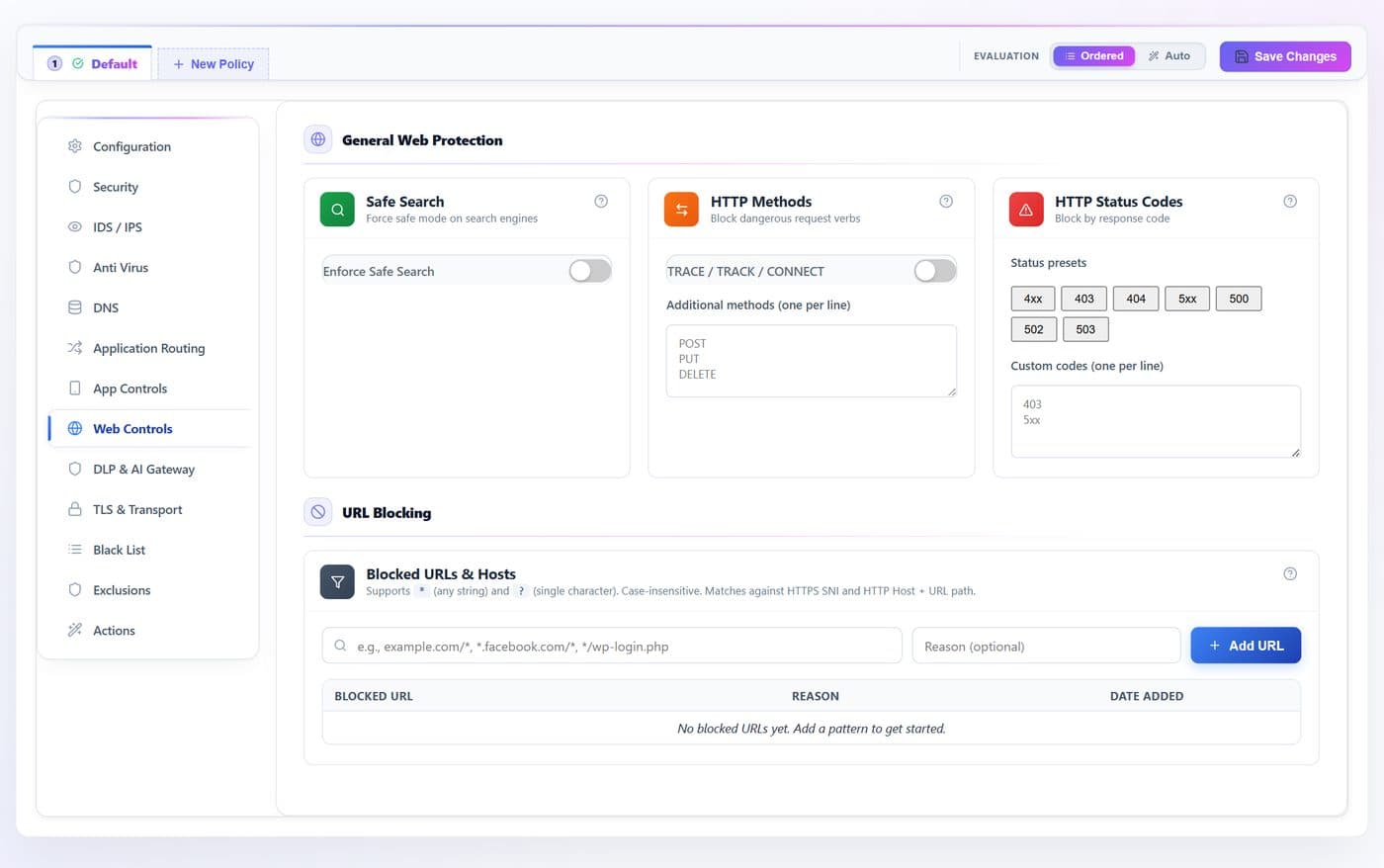

Web Controls

HTTP-layer controls: safe-search enforcement, method and status-code blocking, and the URL blocklist.

#	Control	What it does · how · why
1	Enforce Safe Searchtoggle	Forces Google, Bing, YouTube and DuckDuckGo into strict SafeSearch by rewriting the request on the wire — no client configuration needed. web.safe_search.enable
2	TRACE / TRACK / CONNECTtoggle	One switch for the three methods most often used to probe a proxy. web.http_method_block
3	Additional methodstext	Block further HTTP methods, one per line; stored upper-case. web.http_method_block
4	Status presetsbutton	Block whole response classes or single codes with one click. web.http_status_block
5	Custom status codestext	Block further status codes, one per line. web.http_status_block
6	Blocked URLtext	Block hosts and path patterns — `.facebook.com/`, `*/wp-login.php`. web.url_block
7	Reasontext	An optional note kept with the entry, so the next operator knows why it is there. web.url_block_notes

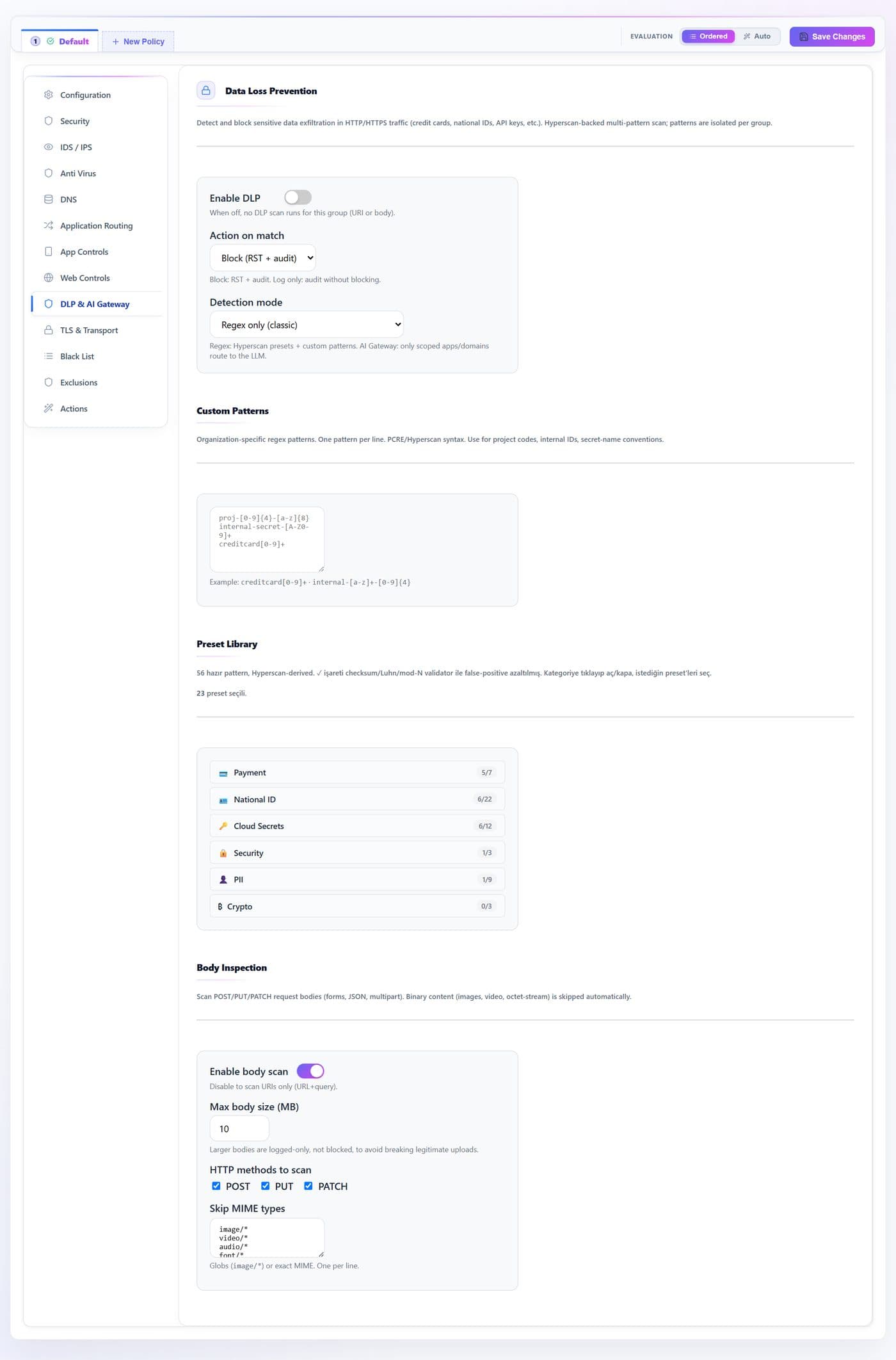

DLP · Regex mode

Data-loss prevention over request bodies. In Regex only mode the engine matches a library of validated detectors plus your own patterns — no external service is involved.

#	Control	What it does · how · why
1	Enable DLPtoggle	Master switch for this group. Off means no DLP scanning at all, URI or body. web.dlp.enable
2	Action on matchselect	Block (reset the connection and audit) or log only. web.dlp.action
3	Detection modeselect	Regex only runs the preset library and your patterns. AI Gateway additionally routes scoped applications and domains to a language model. web.dlp.mode
4	Custom Patternstext	Your own expressions, one per line — project codes, internal identifiers, secret-name conventions. web.dlp.patterns
5	Preset Librarygroup	Around 50 ready detectors grouped by family: payment cards, national identifiers, cloud secrets, keys, personal data, crypto. A ✓ marks the ones with a checksum validator (Luhn, mod-97, mod-11), which keeps false positives low. Click a family to open it and pick individual presets. web.dlp.presets
6	Enable body scantoggle	Scan request bodies, not just the URI. Off means URI and query string only. web.dlp.body_inspection.enable
7	Max body size (MB)num	Bodies larger than this are not scanned. web.dlp.body_inspection.max_mb
8	Skip MIME typestext	Content types never worth scanning — images, video, octet-stream — skipped before any pattern runs. web.dlp.body_inspection.skip_mime

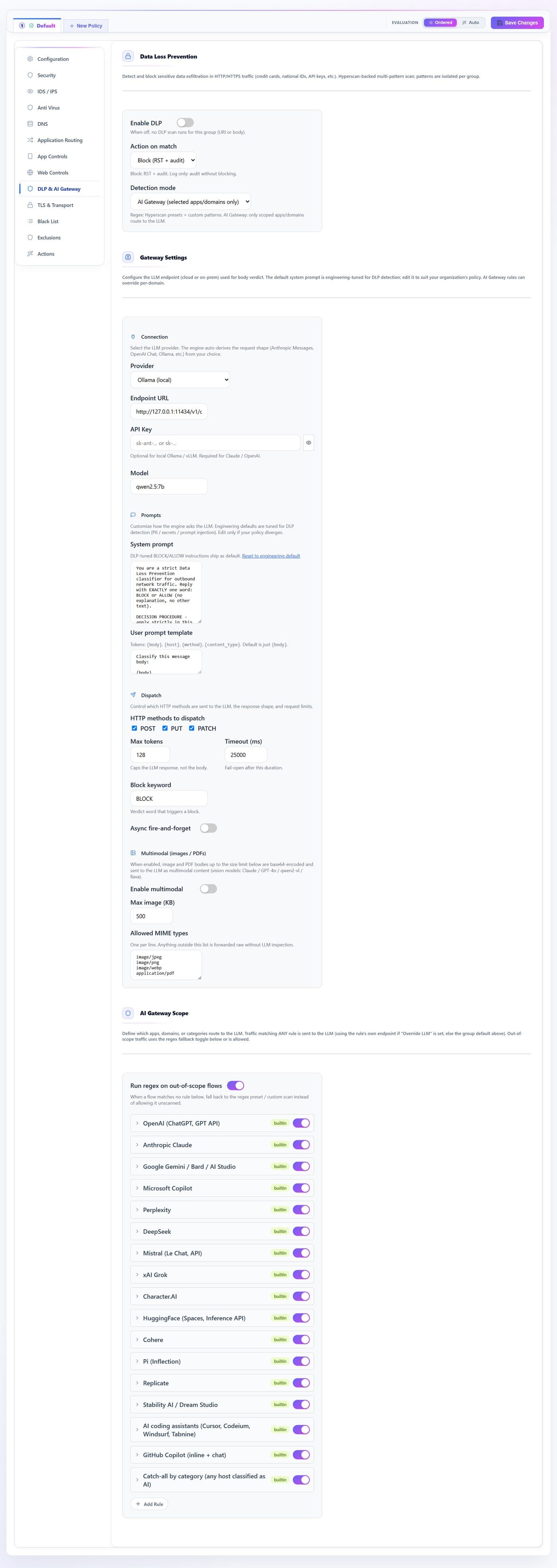

DLP · AI Gateway mode

Switching Detection mode to AI Gateway replaces the pattern-only form with a language-model classifier and a per-provider rule list — for inspecting what staff paste into ChatGPT-style services.

#	Control	What it does · how · why
1	Detection modeselect	Set to AI Gateway. The regex-only controls are replaced by the provider settings below. web.dlp.mode
2	Providerselect	Which classifier to call — a local runtime keeps bodies on the appliance; a hosted API sends them out. web.dlp.llm.provider
3	Endpoint URLtext	Where to reach the model. The default points at a local runtime on the appliance itself. web.dlp.llm.endpoint
4	API Keytext	Credential for a hosted provider; stored in the policy document, so prefer a local runtime when the data is sensitive. web.dlp.llm.api_key
5	Modeltext	Model identifier to request. web.dlp.llm.model
6	System prompttext	The classifier’s instructions. The shipped prompt is hardened to answer with a single verdict keyword. web.dlp.llm.system_prompt
7	Block keywordtext	The exact word the model must return for the submission to be blocked. web.dlp.llm.block_keyword
8	Timeout (ms)num	How long to wait for a verdict before giving up on the flow. web.dlp.llm.timeout_ms
9	Max tokensnum	Caps the classifier’s reply length — a verdict needs very few. web.dlp.llm.max_tokens
10	Async fire-and-forgettoggle	Send the body for classification but do not hold the request. Audits without adding latency; it cannot block. web.dlp.llm.async
11	Regex on out-of-scope flowstoggle	Still run the pattern library on traffic that no gateway rule scopes, so switching modes does not silently stop covering everything else. web.dlp.regex.fallback_when_out_of_scope
12	AI Gateway rulesbutton	One rule per provider: the applications, domains and request paths that count as a submission, with an optional per-rule model override. The shipped list already covers the major assistants. web.dlp.ai_gateway.rules[]

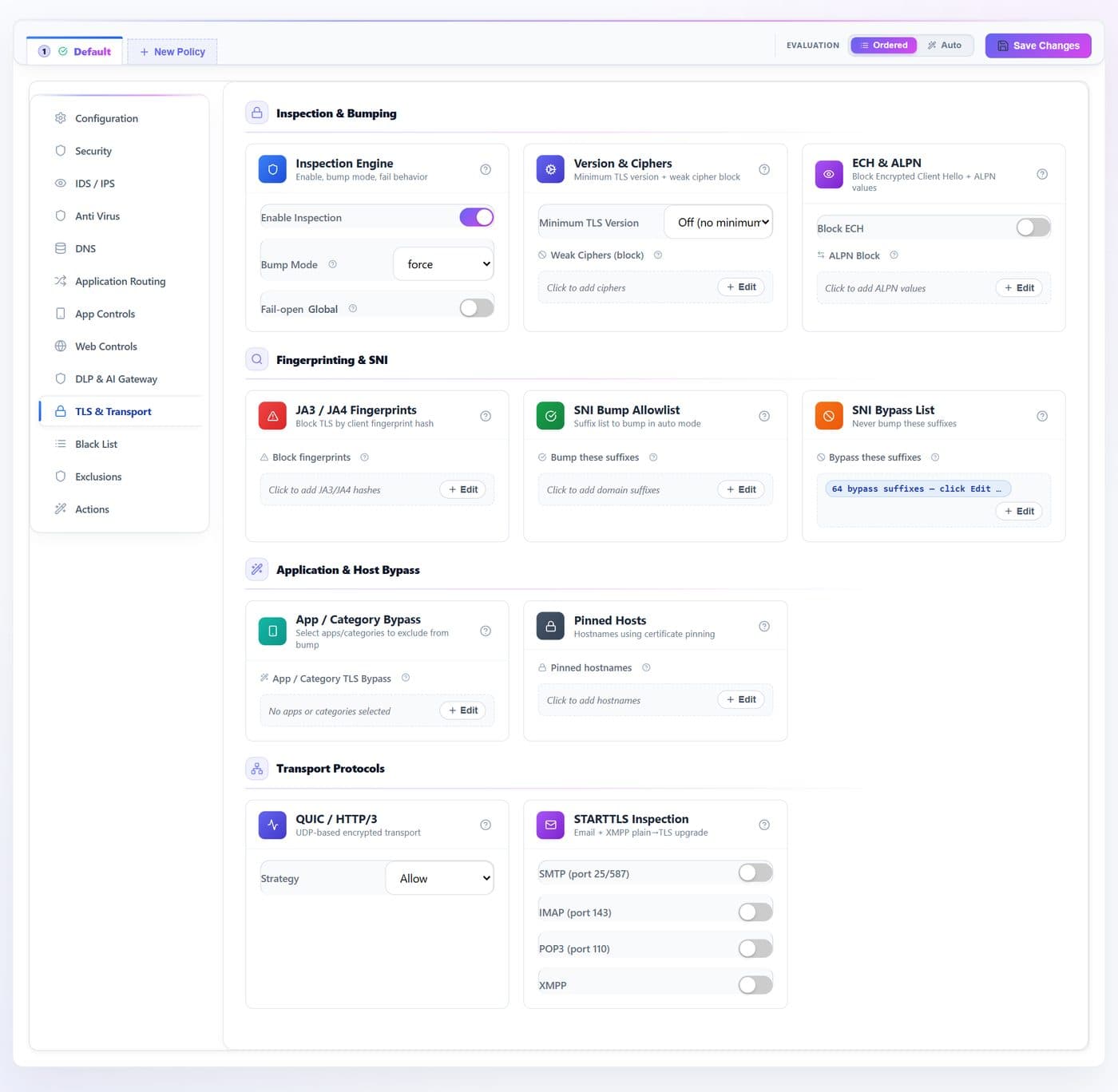

TLS & Transport

TLS interception and transport controls. Bumping decrypts HTTPS so every deep-inspection feature can see inside it; the bypass and pinning lists carve out the traffic that must stay untouched.

#	Control	What it does · how · why
1	Enable Inspectiontoggle	Turns TLS bumping on for this group. tls.enable_inspection
2	Bump Modeselect	How aggressively to intercept: inherit the global, auto, force, or off. tls.bump_mode
3	Minimum TLS Versionselect	Refuse handshakes below this version. Applies to new connections. tls.min_version
4	Block ECHtoggle	Blocks Encrypted ClientHello, which otherwise hides the server name. Test before enabling broadly — modern browsers use it. tls.ech_block
5	Fail-opentoggle	On a bump failure, let the flow through rather than dropping it. tls.fail_open
6	List editorsbutton	Each Edit opens a validated list: weak ciphers, ALPN, JA3/JA4 fingerprints, SNI suffixes to bump or bypass, application and category bypass, and pinned hostnames. tls.weak_ciphers_block · alpn_block · ja3_block · ja4_block_sha256 · sni_bump_sfx · sni_bypass_sfx · tls_app_bypass · tls_cat_bypass · pinned_hosts
7	QUIC / HTTP-3 Strategyselect	Allow QUIC, or block it so clients fall back to inspectable TCP. transport.quic_strategy
8	STARTTLStoggle	Intercept opportunistic TLS upgrades on SMTP, IMAP, POP3 and XMPP. transport.starttls

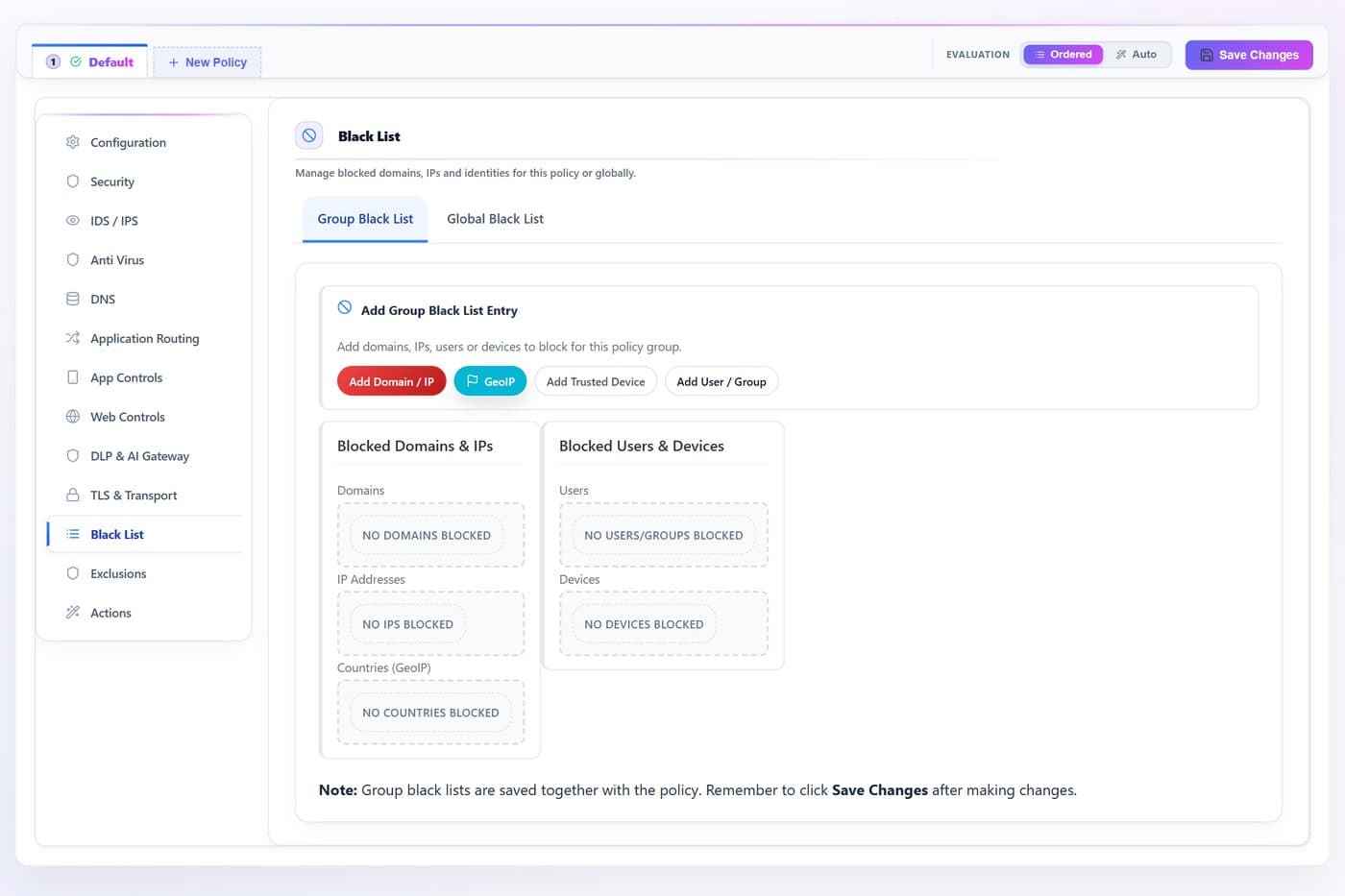

Black List · Group

Direct block lists for this group. The Global sub-tab holds entries that apply to every group.

#	Control	What it does · how · why
1	Add Domain / IPbutton	Block a domain (matched on DNS query, SNI and Host) or an address/subnet. dns.block_domains · network.dst_ip_block
2	GeoIPbutton	Block whole countries by ISO code, from a searchable picker. geo.country_block
3	Add Trusted Devicebutton	Block a specific device by identity. identity.device_block
4	Add User / Groupbutton	Block a directory user or group. identity.user_block · group_block

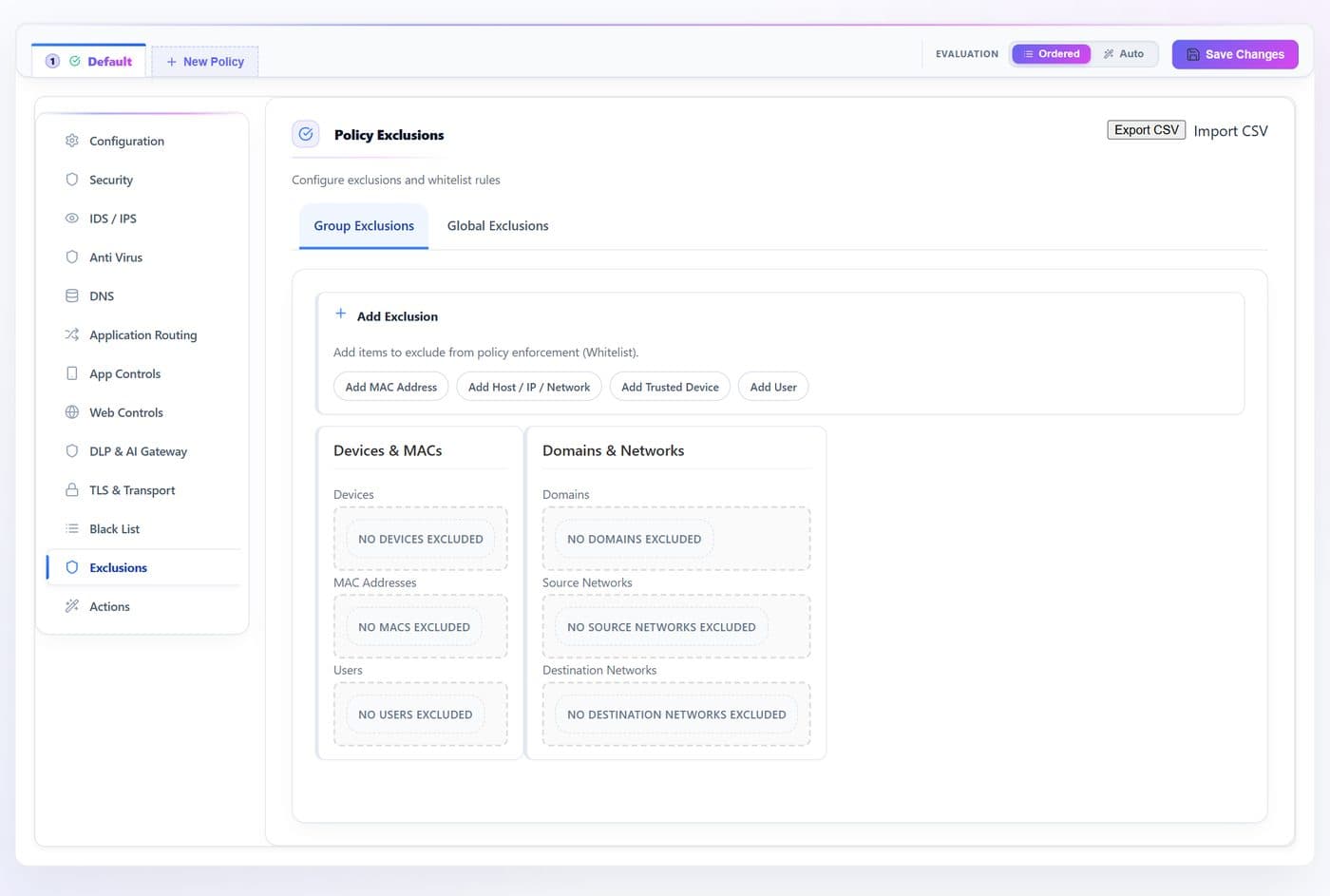

Exclusions · Group

Allow-list carve-outs that bypass this group’s enforcement — the escape hatch for a business-critical host or a false positive you cannot wait to tune out.

#	Control	What it does · how · why
1	Export / Import CSVbutton	Round-trip the exclusion set as `type,value` rows for review or bulk edit. exclusions.*
2	Add MAC Addressbutton	Exclude a device by hardware address. exclusions.macs
3	Add Host / IP / Networkbutton	Exclude a domain (mirrored to the DNS allow-list) or a source/destination subnet. exclusions.domains · src_cidrs · dst_cidrs
4	Add Trusted Devicebutton	Exclude a named device from the inventory. exclusions.devices
5	Add Userbutton	Exclude a directory user wherever they connect from. exclusions.users

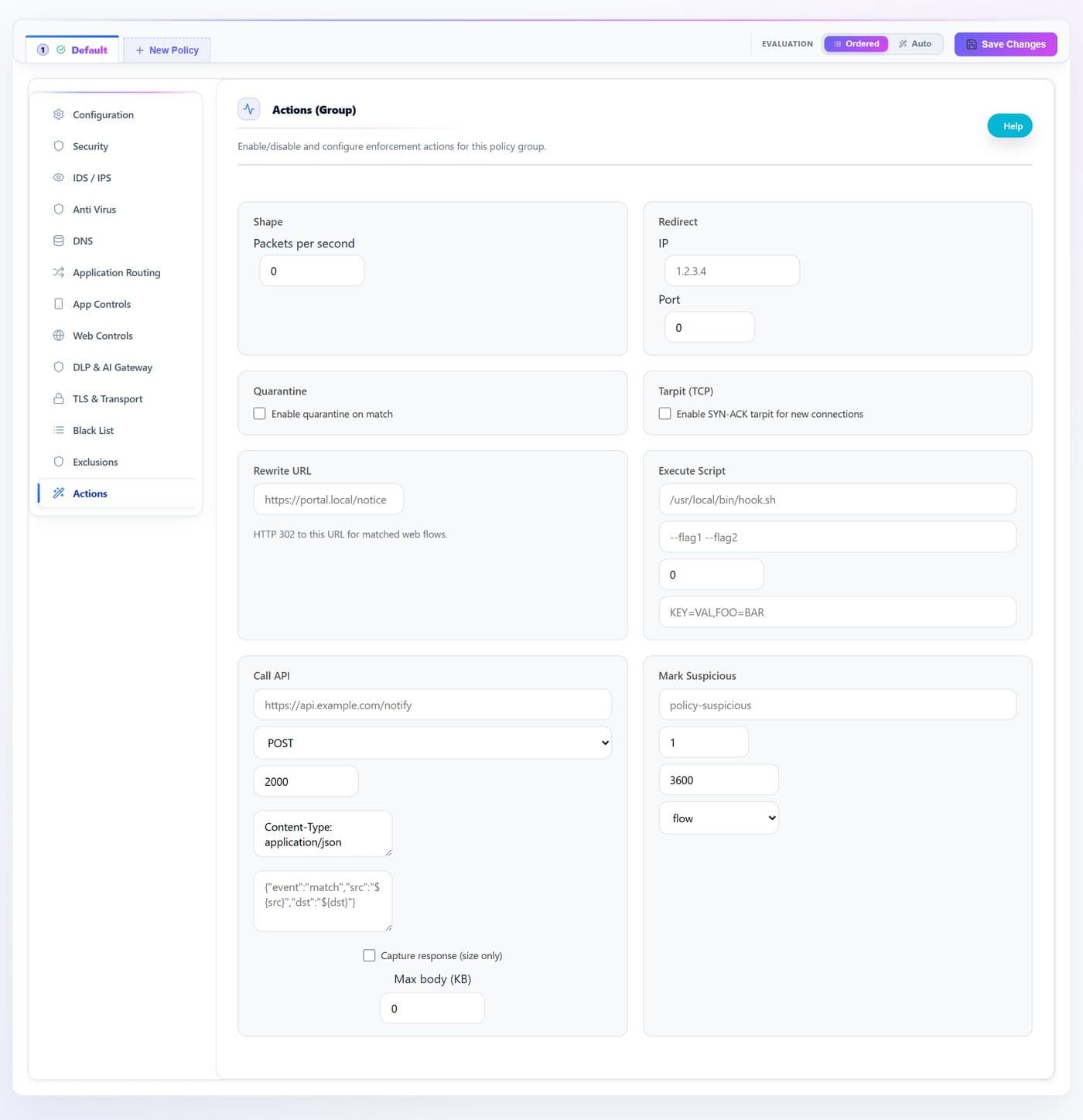

Actions

Side effects the group attaches to a drop decision — shape, redirect, quarantine, tarpit, rewrite, run a script, call an API, or tag the device.

#	Control	What it does · how · why
1	Shape — packets/secnum	Rate-limit matched flows instead of dropping them outright. 0 is off. actions.shape.pps
2	Redirect — IPtext	Send matched traffic to another endpoint, for example a notice page. actions.redirect.ip
3	Redirect — Portnum	The port on that endpoint. actions.redirect.port
4	Quarantine on matchtoggle	Move the offending device into quarantine so later flows are handled as untrusted. actions.quarantine.enable
5	SYN-ACK tarpittoggle	Slow new connections to a crawl rather than refusing them cleanly — useful against scanners. actions.tarpit.enable
6	Rewrite URLtext	Rewrite the request target on plain HTTP, typically to an explanation page. actions.rewrite_url.to
7	Execute Scripttext	Run a script on a drop, with arguments, timeout and environment. `$src`, `$dst` and `$rule_id` are substituted. actions.execute_script
8	Call APItext	Notify an external system on a drop — method, headers and body are configurable, and the response size can be recorded. actions.call_api
9	Mark Suspicioustext	Tag the flow or the device with a name, severity and lifetime, so the risk tag and label block lists can act on it — including on the very next flow. actions.mark_suspicious
